X-Ray kit - Fox Van RC / Bomber CR

The X-Ray kit contains the components needed to convert a shock absorber into an educational tool.
It allows you to demonstrate the shock's operation, explain pressure balancing or learn effective and quick bleeding techniques.

This kit is compatible with the following shocks: Fox Van R, Van RC, or Marzocchi Bomber CR, featuring a stroke of up to 65 mm and a 12.7 mm (1/2") shaft.
*Optionally, a DHX RC2/RC4 shaft with a 15.875 mm (5/8") diameter and a maximum stroke of 57 mm may be used.

The tubes were manufactured from polycarbonate based on original Fox components and then mechanically polished. Clarity will increase upon contact with oil.
Due to the redesigned reservoir, the suggested IFP piston depth is 32 mm.
For safety reasons, exceeding a pressure of 150 psi is not recommended.
The use of brake disc cleaner or isopropyl alcohol for cleaning is not recommended. Contact with these substances may cause ESC cracking. Fill only with Fox 10wt red or 10wt green oil.

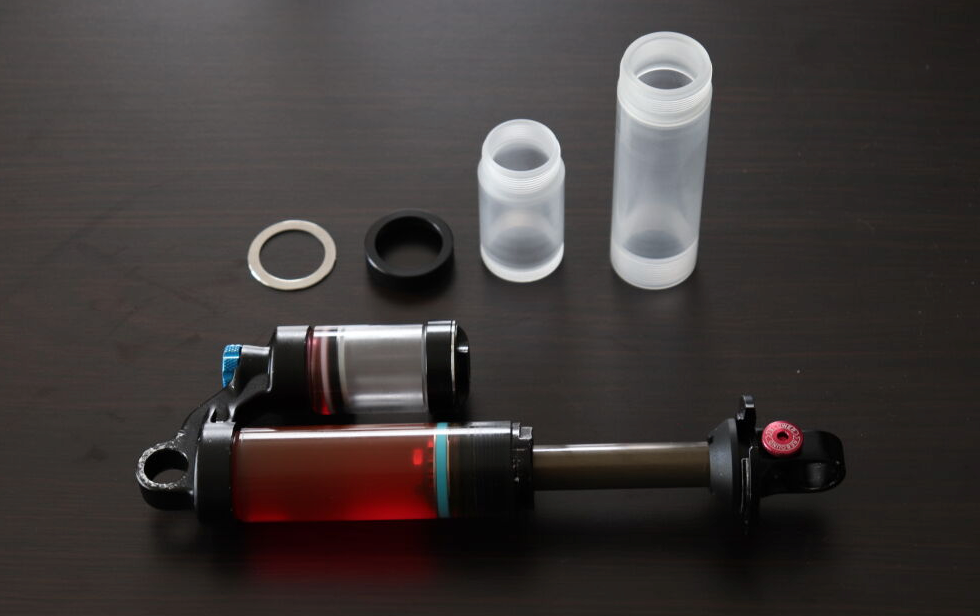

*****  The kit does not include the shock itself, only the components shown in the final photo. *****
